ARCH 1101- Google Sketchup 8, 2D to 3D Modelling.

Original Sketch during Studio Session

Above Section: 'Dove' ( It is meant to be a representation the a Dove's wing from Banksy's work)

Underground Section:  'Dark'

New and Improved Sketch

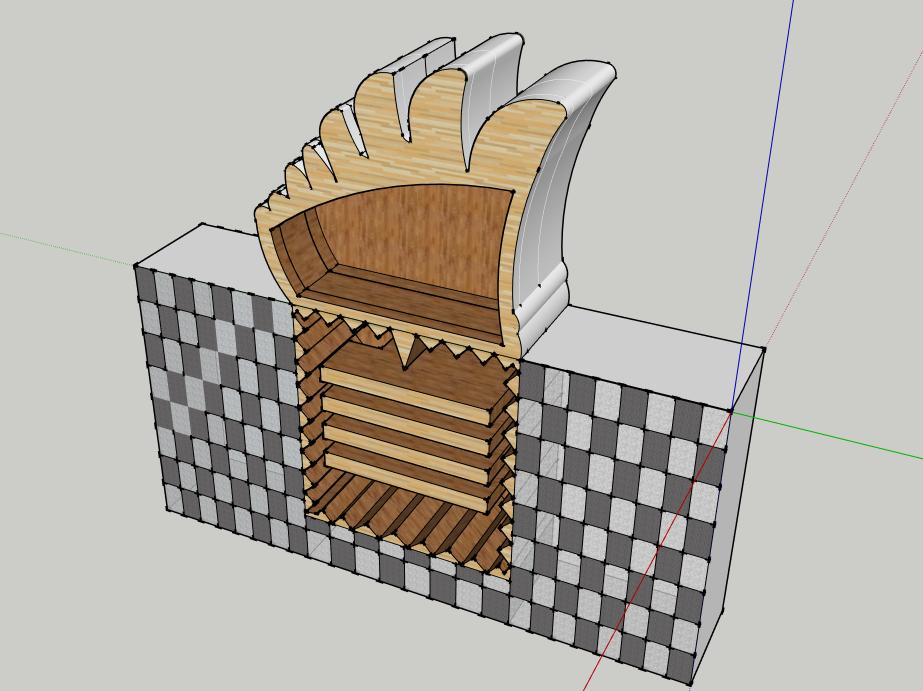

Front view of my 3D 'draft Model' using Google SketchUp 8

Side Angle view of 3D 'draft Model' using Google SketchUp 8

Materials chosen include wood, steel and glass.

The Dove's wing is what inspired me to create the upperground model, the exterior is finished off with white paint. In contrast to the smooth curves and white colour of the wing, the underground section is composed of sharp corners from the roof, walls and ground to create a 'dark feel'. The light isn't able to bounce off the walls and this dramatically affects the lighting of the room.
